WP Series
Immersive Fine Pitch Displays
| Specifications | |
| Pixel Pitch (mm): | 1.2 / 1.5 / 1.8 / 2.3 / 2.5 / 3.1 |
| Brightness (nits): | up to 1500 |
| Application: | Install |
| Environments: | Indoor |
| IP Rating: | IP30 |
Key Features
- Ultra thin design
- Ultra high definition
- Rapid installation system
- Slim line mounting brackets
- Portability options
- Easy front service access
Immersive Fine Pitch Displays
WP series is Vuepix Infiled’s flagship ultra-thin, ultra-high resolution digital LED display.
The all-in-one design of WP series panels offer the perfect solution for any installation requiring ultra-high definition. With a panel ratio of 16:9 and a pixel pitch ranging from 1.25mm to 3.1mm, configurations of 2K, 4K, and 8K resolution displays can be easily achieved with WP series.
With an ultra-thin edge thickness and an intuitive slim line mounting system, VuePix Infiled’s WP series offers high definition performance in a sleek form factor.
WP series features front service modules for efficient hassle free maintenance, resulting in minimal screen downtime.
With the highest quality LED components, superior image quality, and a sleek form factor, WP series is ready to transform any surface into an ultra-high definition digital canvas.

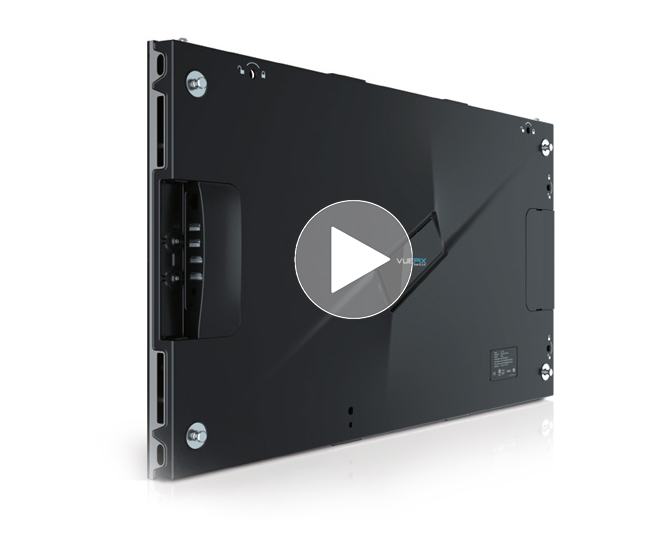

WP FEATURES
Ultra High Definition
Ultra Thin
Ultra Lightweight
Low Power Consumption
High Definition

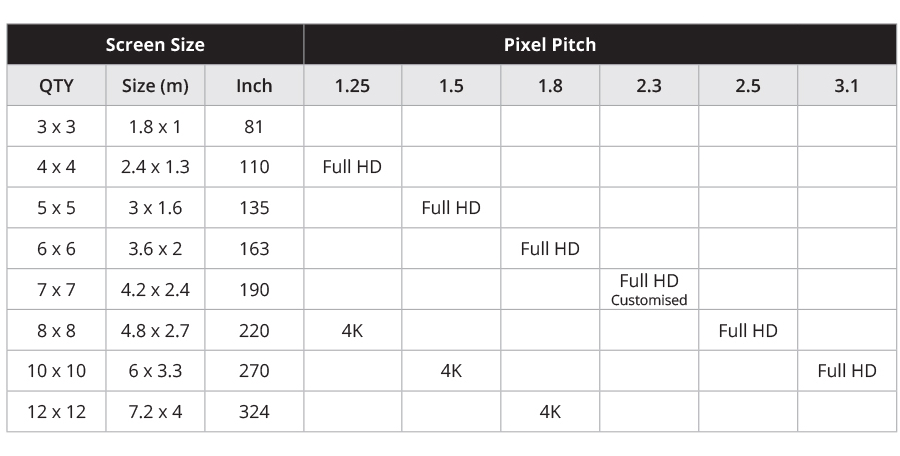

Aspect Ratio
A panel ratio of 16:9 combined with fine pixel pitch allows for easy setup of Full HD, 4K and 8K resolution displays.
Easy Configuration
Easy setup for Full HD, 4K, and 8K screen resolutions.
Features
Easy Maintenance
WP series features front service LED modules for ease of access during maintenance.
The innovative suction tool prevents damage to the LED’s during maintenance.

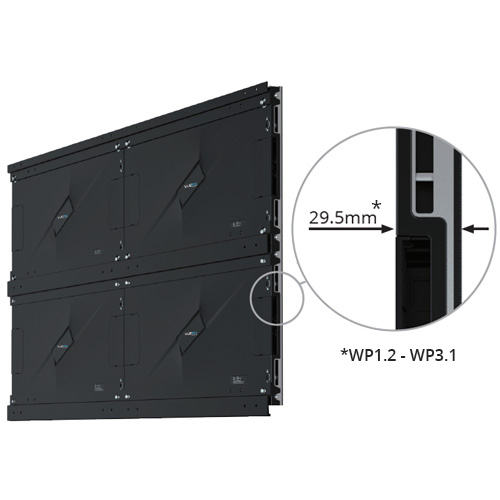

Ultra-Thin
With an ultra-thin edge thickness and an intuitive slim line mounting system, VuePix Infiled’s WP series offers high definition performance in a sleek form factor.
WP series is up to 40% lighter than traditional LED cabinets, and lighter than large format LCD displays.

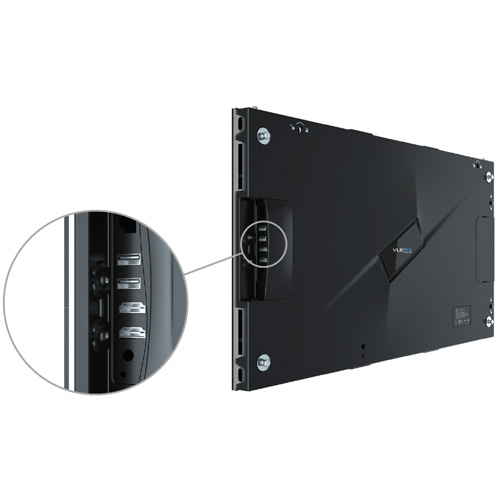

Control Solution
WP series can use traditional control solutions or local inputs and media players can be integrated into the unit to make it a complete standalone screen.
This is perfect for mobile digi-board solutions or for home theatre installations.

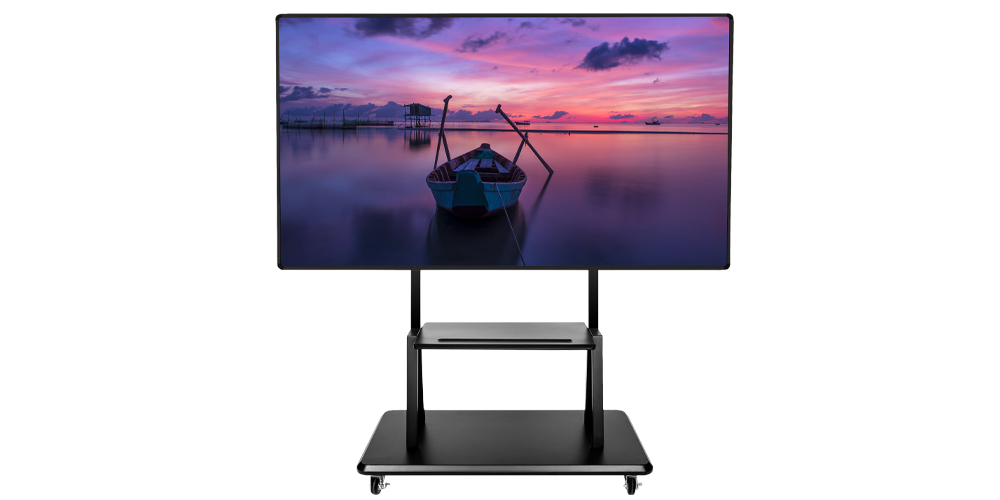

Portable HD DigiBoard
VuePix Portable HD DigiBoard provides you with a new level of flexibility when it comes to using LED screens for corporate events, indoor advertising and digital signage.
Our mobile DigiBoard is based on the VuePix Infiled revolutionary WP series, offering the latest ultra thin, ultra-light & ultra hi-res LED screen technology, now with the flexibility to use it anywhere and anytime! Simply wheel your DigiBoard to a desired location and you have a perfect digital medium to communicate your message to the audience.
The state of the art, slimline, versatile & portable screen comes in 2 different standard sizes of 108” or a 136” diagonally, with custom options available. Our Portable DigiBoard is designed to deliver superb visuals in any kind of indoor environment, including Conference rooms, Office Spaces, Hotels, Event Centres, Entertainment Venues, Hospitals, Schools & Universities and many more.
HIGH DEFINITION
• Native Full HD resolution
• 16:9 ratio
SUPER LIGHTWEIGHT
• Great flexibility & portability
• Just wheel it in!
ULTIMATE IMAGE QUALITY
• High refresh rate
• High grey scale & wide colour gamut
CLOUD & DUAL PLAY MODE
• Cloud & integrated control system
• Abundant interfaces, plug & play
SLEEK FORM FACTOR
• Slimline cable-free design
• Ultra-thin display
EASY SERVICE & MAINTENANCE
• Front maintenance access
• Magnetic vacuum suction tool
PRODUCT SPECIFICATIONS
| Model | WP Pro Indoor P1.2 | WP Lite Indoor P1.2 | WP Pro Indoor P1.5 | WP Lite Indoor P1.5 | WP Pro Indoor P1.8 |
| Series | WP | WP | WP | WP | WP |
| Version | Pro | Lite | Lite | Lite | Pro / Lite | Pixel Pitch (mm) | 1.25 mm | 1.25 mm | 1.56 mm | 1.56 mm | 1.87 mm |
| Environment | Indoor | Indoor | Indoor | Indoor | Indoor |
| LED Configuration | SMD1010 black LED Flip chip | SMD1010 black LED Flip chip | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD |
| Max Brightness | 1000 nits | 800 nits | 1000 nits | 800 nits | 1200 nits |
| Refresh Rate | ≤3,840 Hz | ≤3,840 Hz | ≤3,84 Hz | ≤3,84 Hz | ≤3,840 Hz |
| Viewing Angle | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
| Cabinet Weight | 5.2 Kg | 5.2 Kg | 5.2 Kg | 5.2 Kg | 5.2 Kg |
| Dimensions Width (mm) | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm |
| Dimensions Height (mm) | 337.5 mm | 337.5 mm | 337.5 mm | 337.5 mm | 337.5 mm |
| Dimensions Depth (mm) | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm |
| Cabinet Resolution | 480 x 270 Pixels | 480 x 270 Pixels | 384 x 216 Pixels | 384 x 216 Pixels | 320 x 180 Pixels |
| Max Power Consumption / m2 | 270 W/m² | 667 W/m² | 741 W/m² | 741 W/m² | 741 W/m² |
| Avg Power Consumption / m2 | 90 W/m² | 222 W/m² | 247 W/m² | 247 W/m² | 247 W/m² |
| Max Power Consumption / Panel | 55 W/panel | 135 W/panel | 150 W/panel | 150 W/panel | 150 W/panel |
| Avg Power Consumption / Panel | 18 W/panel | 45 W/panel | 50 W/panel | 50 W/panel | 50 W/panel |
| Transparency | N/A | N/A | N/A | N/A | N/A |
| Curving | See WP Wrap | See WP Wrap | See WP Wrap | See WP Wrap | See WP Wrap |
| Operating Power Source | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz |
| Operating Temperature | -10°C ~ +45°C | -10°C ~ +45°C | −10°C ~ +45°C | −10°C ~ +45°C | -10°C ~ +45°C |
| Ingress Protection | IP30 | IP30 | IP30 | IP30 | IP30 |
| Verification | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM |
| Application | Install | Install | Install |
| Model | WP Lite Indoor P1.8 | WP Pro Indoor P2.3 | WP Lite Indoor P2.3 | WP Pro Indoor P2.5 | WP Lite Indoor P2.5 |
| Series | WP | WP | WP | WP | WP |
| Version | Lite | Pro | Lite | Pro | Lite |
| Pixel Pitch (mm) | 1.87 mm | 2.34 mm | 2.34 mm | 2.5 mm | 2.5 mm |
| Environment | Indoor | Indoor | Indoor | Indoor | Indoor |
| LED Configuration | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD |
| Max Brightness | 800 nits | 1200 nits | 1000 nits | 1500 nits | 1200 nits |
| Refresh Rate | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz |
| Viewing Angle | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
| Cabinet Weight | 5.2 Kg | 5.2 Kg | 5.2 Kg | 5.2 Kg | 5.2 Kg |
| Dimensions Width (mm) | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm |
| Dimensions Height (mm) | 337.5 mm | 337.5 mm | 337.5 mm | 337.5 mm | 337.5 mm |
| Dimensions Depth (mm) | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm | 29.5 mm |
| Cabinet Resolution | 320 x 180 Pixels | 256 x 144 Pixels | 256 x 144 Pixels | 240 x 135 Pixels | 240 x 135 Pixels |
| Max Power Consumption / m2 | 741 W/m² | 518 W/m² | 518 W/m² | 741 W/m² | 741 W/m² |
| Avg Power Consumption / m2 | 247 W/m² | 173 W/m² | 173 W/m² | 247 W/m² | 247 W/m² |
| Max Power Consumption / Panel | 150 W/panel | 105 W/panel | 105 W/panel | 150 W/panel | 150 W/panel |
| Avg Power Consumption / Panel | 50 W/panel | 35 W/panel | 35 W/panel | 50 W/panel | 50 W/panel |
| Transparency | N/A | N/A | N/A | N/A | N/A |
| Curving | See WP Wrap | See WP Wrap | See WP Wrap | See WP Wrap | See WP Wrap |
| Operating Power Source | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz |
| Operating Temperature | -10°C ~ +45°C | -10°C ~ +45°C | -10°C ~ +45°C | -10°C ~ +45°C | -10°C ~ +45°C |
| Ingress Protection | IP30 | IP30 | IP30 | IP30 | IP30 |
| Verification | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM |
| Application | Install | Install | Install | Install | Install |
| Model | WP Pro Indoor P3 | WP Lite Indoor P3 | WP Wrap Indoor P2.5 |
| Series | WP | WP | WP |
| Pixel Pitch (mm) | 3.12 mm | 3.12 mm | 2.5 mm |
| Environment | Indoor | Indoor | Indoor |
| LED Configuration | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD |
| Max Brightness | 1500 nits | 1200 nits | 1500 (Pro) 1200 (Lite) nits |
| Refresh Rate | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz |
| Viewing Angle | 160 / 160 | 160 / 160 | 160° / 160° |
| Cabinet Weight | 5.2 Kg | 5.2 Kg | 6.2 Kg |
| Dimensions Width (mm) | 600 mm | 600 mm | 600 mm |
| Dimensions Height (mm) | 337.5 mm | 337.5 mm | 337.5 mm |
| Dimensions Depth (mm) | 29.5 mm | 29.5 mm | 57.6 mm |
| Cabinet Resolution | 192 x 108 Pixels | 192 x 108 Pixels | 240 x 135 Pixels |
| Max Power Consumption / m2 | 592 W/m² | 592 W/m² | 741 W/m² |
| Avg Power Consumption / m2 | 198 W/m² | 198 W/m² | 247 W/m² |
| Max Power Consumption / Panel | 120 W/panel | 120 W/panel | 150 W/panel |
| Avg Power Consumption / Panel | 40 W/panel | 40 W/panel | 50 W/panel |
| Transparency | N/A | N/A | N/A |
| Curving | See WP Wrap | See WP Wrap | Customisable |
| Operating Power Source | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz | 100-240V AC, 50-60Hz |
| Operating Temperature | -10°C ~ +45°C | -10°C ~ +45°C | -10°C ~ +45°C |
| Ingress Protection | IP30 | IP30 | IP30 |
| Verification | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS |
| Application | Install | Install | Install |
