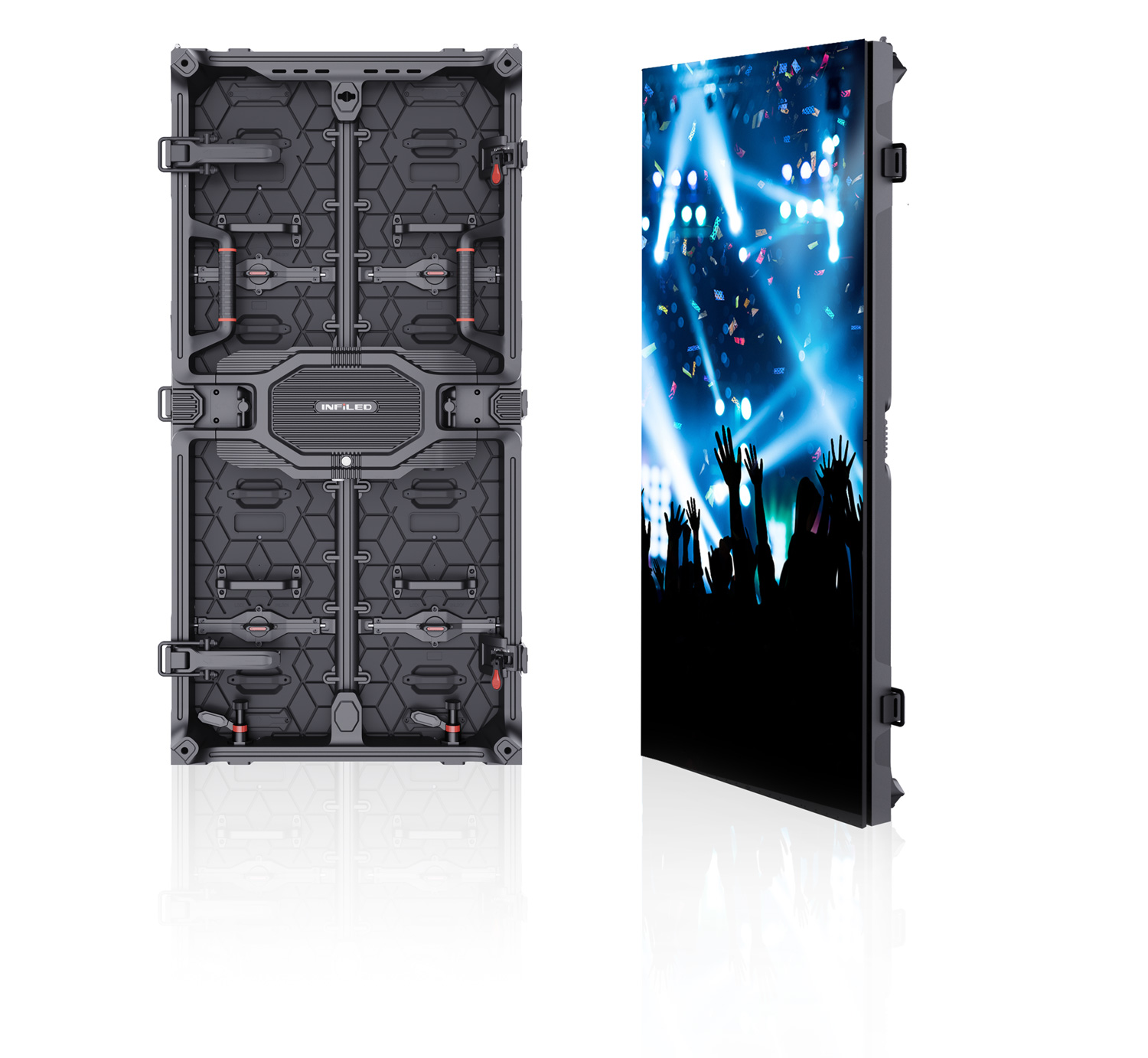

AR2 SERIES
Delivering Outstanding Performance
| Specifications | |
| Pixel Pitch (mm): | 2.9 /3.9 / 4.6 / 5.9 / 6.9 / 7.8 / 10.4 |
| Brightness (nits): | up to 5000 |
| Application: | Rental / Install |
| Environments: | Indoor / Outdoor |
| IP Rating: | IP65 |
Key Features
- Ultra thin & lightweight
- Quick & Easy Setup
- Refined Curving System
- Precise Calibration
- Front & Rear Maintenance
- Wide Range of Accessories
- Flexible setup
Delivering Outstanding Performance
The AR2 series from VuePix Infiled is a remastered version of one of the most popular series within the range.
Delivering an exceptional performance, the AR2 series has been crafted to cater
for a wide range of indoor and outdoor applications, such as exhibitions, concerts
& touring, corporate events, etc.
The slim and lightweight cabinets feature the latest quick-lock mechanism for easy set up and precise alignment. The panels are equipped with ergonomic handles for easy manoeuvring.
The redefined curving system provides the flexibility to create concave and convex curved displays with 9 adjustable angles.
The AR2 series offers a wide range of accessories, including transport dolly system and a robust bracket for enhanced stability, enforcing the LED system to withstand strong winds of up to 20m/s in outdoor environments.
AR2 SERIES FEATURES
Ultra Lightweight
Thin Design
Curved Screen
IP65
Lightweight yet Durable
The AR2 series cabinets feature strong magnesium allow frame, making them lightweight yet durable to withstand outdoor elements.

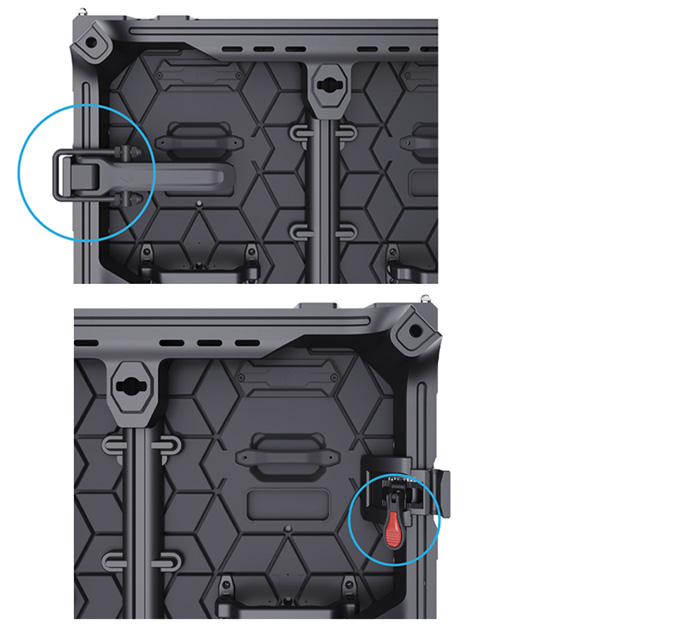

Quick & easy setup
The latest quick-lock mechanism allows for easy set up and precise alignment.
Each cabinet is equipped with a telescopic positioning lock to secure a tight connection of the upper and lower rows. The panels are equipped with ergonomic handles for easy manoeuvring.
Redefined Curving System
The redefined curving system provides with a flexibility to create concave and convex curved displays with 9 adjustable angles in 2.5deg increments.
Precise Calibration
Pixel-by-pixel calibration technology ensures that the displayed content is accurate in colour and of a superior quality.

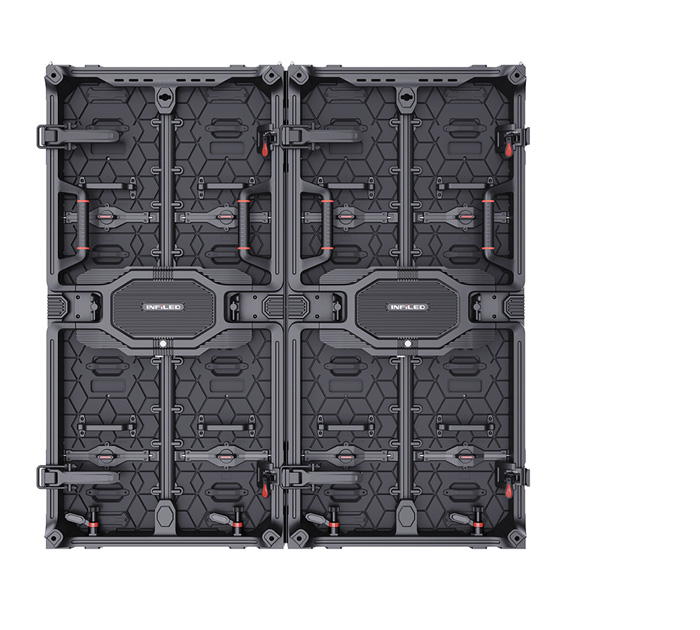

Flexible Set up
The stacking structure ensures high stability of your LED system and can safely hold up to 20 cabinets (safety factor 10).

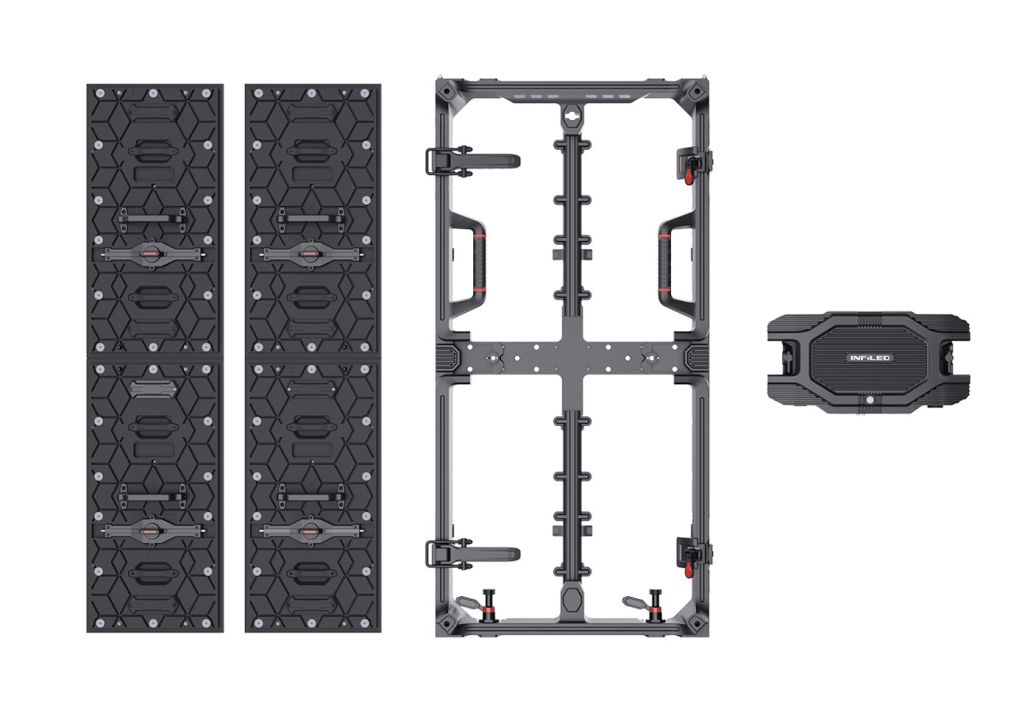

Front & Rear Maintenance
LED modules and other panel components can be easily replaced, including power and data unit. Front and rear service options are available.

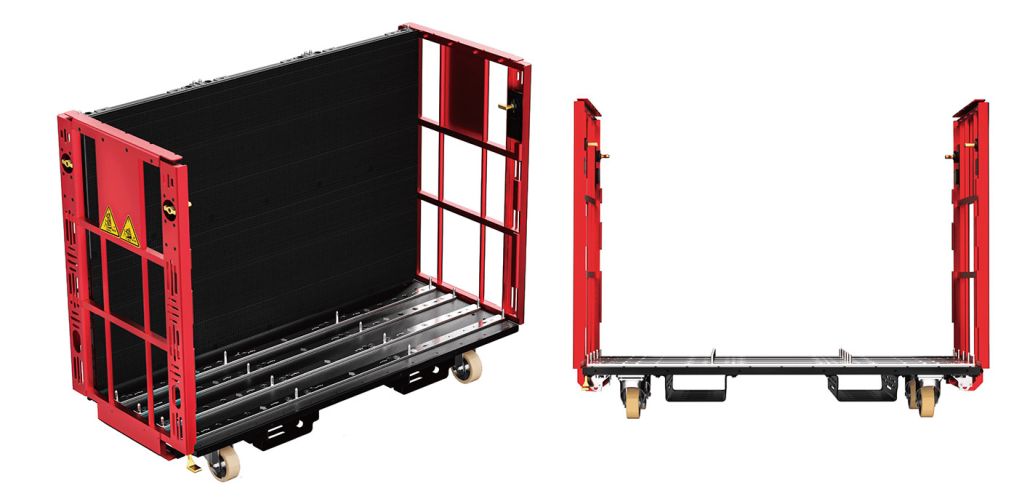

Wide Range of Accessories
The AR2 series offers a wide range of accessories, including dedicated transport
dolly system.
The robust bracket allows for enhanced stability, enforcing the LED system
to withstand strong winds of up to 20m/s in outdoor environments.
PRODUCT SPECIFICATIONS
| Model | AR2 Indoor P2 | AR2 Indoor P3 | AR2 Indoor P5 | AR2 Indoor P6 |
| Series | AR2 | AR2 | AR2 | AR2 |
| Pixel Pitch (mm) | 2.97 mm | 3.91 mm | 5.95 mm | 6.94 mm |
| Environment | Indoor | Indoor | Indoor | Indoor |
| LED Configuration | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD |
| Max Brightness | 1200 nits | 1200 nits | 1000 nits | 1000 nits |
| Refresh Rate | ≤2,880 Hz | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz |
| Viewing Angle | 160° / 160° | 160° / 160° | 160° / 160° | 160° / 160° |
| Cabinet Weight | 12.8 Kg | 12.5 Kg | 12.5 Kg | 12.5 Kg |
| Dimensions Width (mm) | 500 mm | 500 mm | 500 mm | 500 mm |
| Dimensions Height (mm) | 1000 mm | 1000 mm | 1000 mm | 1000 mm |
| Dimensions Depth (mm) | 82 mm | 82 mm | 82 mm | 82 mm |
| Cabinet Resolution | 168 x 336 Pixels | 128 x 256 Pixels | 84 x 168 Pixels | 72 x 144 Pixels |
| Max Power Consumption / m2 | 540 W/m² | 540 W/m² | 540 W/m² | 540 W/m² |
| Avg Power Consumption / m2 | 180 W/m² | 180 W/m² | 180 W/m² | 180 W/m² |
| Max Power Consumption / Panel | 270 W/panel | 270 W/panel | 270 W/panel | 270 W/panel |
| Avg Power Consumption / Panel | 90 W/panel | 90 W/panel | 90 W/panel | 90 W/panel |
| Transparency | N/A | N/A | N/A | N/A |
| Curving | Optional | Optional | Optional | Optional |
| Operating Power Source | 100-240V AC 50-60Hz | 100-240V AC 50-60Hz | 100-240V AC 50-60Hz | 100-240V AC 50-60Hz |
| Operating Temperature | -10°C ~ +45°C | -10°C ~ +45°C | -10°C ~ +45°C | -10°C ~ +45°C |
| Ingress Protection | IP30 | IP30 | IP30 | IP30 |
| Verification | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM |
| Application | Rental/ Install | Rental/ Install | Rental/ Install | Rental/ Install |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model | AR2 Outdoor P3 | AR2 Outdoor Turbo P3 | AR2 Outdoor Ultra P3 | AR2 Outdoor P4 | AR2 Outdoor P5 |
| Series | AR2 | AR2 | AR2 | AR2 | AR2 |
| Pixel Pitch (mm) | 3.91 mm | 3.91 mm | 3.91 mm | 4.63 mm | 5.95 mm |
| Environment | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| LED Configuration | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD | 3 IN 1 SMD |
| Max Brightness | 5000 nits | 4000 nits | 5000 nits | 5000 nits | 5000 nits |
| Refresh Rate | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz | ≤3,840 Hz |
| Viewing Angle | 160° / 155° | 160° / 155° | 160° / 135° | 160° / 135° | 160° / 130° |
| Cabinet Weight | 12.5 Kg | 12.5 Kg | 12.5 Kg | 12.6 Kg | 12.6 Kg |
| Dimensions Width (mm) | 500 mm | 500 mm | 500 mm | 500 mm | 500 mm |
| Dimensions Height (mm) | 1000 mm | 1000 mm | 1000 mm | 1000 mm | 1000 mm |
| Dimensions Depth (mm) | 82 mm | 82 mm | 82 mm | 83 mm | 84 mm |
| Cabinet Resolution | 128 x 256 Pixels | 128 x 256 Pixels | 128 x 256 Pixels | 108 x 216 Pixels | 84 x 168 Pixels |
| Max Power Consumption / m2 | 540 W/m² | 720 W/m² | 720 W/m² | 540 W/m² | 600 W/m² |
| Avg Power Consumption / m2 | 180 W/m² | 240 W/m² | 240 W/m² | 180 W/m² | 200 W/m² |
| Max Power Consumption / Panel | 270 W/panel | 360 W/panel | 360 W/panel | 270 W/panel | 300 W/panel |
| Avg Power Consumption / Panel | 90 W/panel | 120 W/panel | 120 W/panel | 90 W/panel | 100 W/panel |
| Transparency | N/A | N/A | N/A | N/A | N/A |
| Curving | Optional | Optional | Optional | Optional | Optional |
| Operating Power Source | 100-240V AC 50-60Hz | 100-240V AC 50-60Hz | 100-240V AC 50-60Hz | 100-240V AC 50-60Hz | 100-240V AC 50-60Hz |
| Operating Temperature | -20°C ~ +50°C | -20°C ~ +50°C | -20°C ~ +50°C | -20°C ~ +50°C | -20°C ~ +50°C |
| Ingress Protection | IP65 | IP65 | IP65 | IP65 | IP65 |
| Verification | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, REACH, WEEE, Fireproof | CE, ETL, FCC, RoHS, REACH, WEEE, Fireproof | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM |
| Application | Rental/ Install | Rental | Rental/ Install | Rental/ Install | Rental/ Install |
| Model | AR2 Outdoor P7 | AR2 Outdoor P10 |
| Series | AR2 | AR2 |
| Pixel Pitch (mm) | 7.81 mm | 10.41 mm |
| Environment | Outdoor | Outdoor |
| LED Configuration | 3 IN 1 SMD | 3 IN 1 SMD |
| Max Brightness | 5000 nits | 5000 nits |
| Refresh Rate | ≤3,840 Hz | ≤3,840 Hz |
| Viewing Angle | 160° / 130° | 160° / 110° |
| Cabinet Weight | 12.6 Kg | 12.3 Kg |
| Dimensions Width (mm) | 500 mm | 500 mm |
| Dimensions Height (mm) | 1000 mm | 1000 mm |
| Dimensions Depth (mm) | 85 mm | 85 mm |
| Cabinet Resolution | 64 x 128 Pixels | 48 x 96 Pixels |
| Max Power Consumption / m2 | 600 W/m² | 600 W/m² |
| Avg Power Consumption / m2 | 200 W/m² | 200 W/m² |
| Max Power Consumption / Panel | 300 W/panel | 300 W/panel |
| Avg Power Consumption / Panel | 100 W/panel | 100 W/panel |
| Transparency | N/A | N/A |
| Curving | Optional | Optional |
| Operating Power Source | 100-240V AC 50-60Hz | 100-240V AC 50-60Hz |
| Operating Temperature | -20°C ~ +50°C | -20°C ~ +50°C |
| Ingress Protection | IP65 | IP65 |
| Verification | CE, ETL, FCC, RoHS, RCM | CE, ETL, FCC, RoHS, RCM |
| Application | Rental/ Install | Rental/ Install |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
| Model |
| Series |
| Pixel Pitch (mm) |
| Environment |
| LED Configuration |
| Max Brightness |
| Refresh Rate |
| Viewing Angle |
| Cabinet Weight |
| Dimensions Width (mm) |
| Dimensions Height (mm) |
| Dimensions Depth (mm) |
| Cabinet Resolution |
| Max Power Consumption / m2 |
| Avg Power Consumption / m2 |
| Max Power Consumption / Panel |
| Avg Power Consumption / Panel |
| Transparency |
| Curving |
| Operating Power Source |
| Operating Temperature |
| Ingress Protection |
| Verification |
| Application |
